Size of LEDs for the cluster
Moderators: Helpinators, Moderators
-
- First Gear
- Posts: 69
- Joined: Sun Dec 19, 2010 10:25 pm
- Location: Forest Grove, Oregon
Size of LEDs for the cluster
Im wanting to put red LEDs in, instead of the stock green and im wondering what size i should get for that.
93 Winestone Subaru Legacy L AWD-BROKEN
86 White Toyota 4Runner SR5 4x4
---Girls love it when I hit it sideways(It's a DRIFT thing)---
86 White Toyota 4Runner SR5 4x4
---Girls love it when I hit it sideways(It's a DRIFT thing)---
Re: Size of LEDs for the cluster
The bulbs are white, the 'condom' covering them are green. Thus, easy to change over to red.
'11 WRX Limited
'94 SS | 3" TBE, 07 TMIC, TD05H-16G, Revtronix Stage 2, Walbro -- Sold
'94 TW | R.I.P.
-
- First Gear
- Posts: 222
- Joined: Sat Sep 19, 2009 6:21 am
- Location: Reno, NV
Re: Size of LEDs for the cluster
The gauges them selves have green tinting as well, if you shine a light through them they look mint colored. I'm wanting to do a plain LED white, just nice and simple and clean look... I haven't gotten anywhere yet, I don't like mint.
07 Outback XT VF52
94 Legacy Sport, VF23, 550 RobTune, various other things
93 Legacy Touring Wagon EJ205 management and dash swap (in progress)
90 Loyale Turbo, EJ Turbo Swap, 2" lift
82 Brat, EJ22 swap, RX AWD trans w/ LSD rear, 5 lug 4 wheel disc.
94 Legacy Sport, VF23, 550 RobTune, various other things
93 Legacy Touring Wagon EJ205 management and dash swap (in progress)
90 Loyale Turbo, EJ Turbo Swap, 2" lift
82 Brat, EJ22 swap, RX AWD trans w/ LSD rear, 5 lug 4 wheel disc.
-
- Fourth Gear
- Posts: 1047
- Joined: Thu Feb 16, 2006 5:00 am
- Location: kelowna bc canada
- Contact:
Re: Size of LEDs for the cluster
4 red - #74
2 red - #194
didn't remove any of the white backing on the cluster just plug in LEDS and re-install cluster
2 red - #194
didn't remove any of the white backing on the cluster just plug in LEDS and re-install cluster
Re: Size of LEDs for the cluster
That looks pretty good. What about the green tinting, did you do anything with that?
Josh
surrealmirage.com/subaru
1990 Legacy (AWD, 6MT, & EJ22T Swap)
2020 Outback Limted XT
If you need to get a hold of me please email me rather then pm
surrealmirage.com/subaru
1990 Legacy (AWD, 6MT, & EJ22T Swap)
2020 Outback Limted XT
If you need to get a hold of me please email me rather then pm
Re: Size of LEDs for the cluster
holy red cluster bat man !!
1993 Subaru Legacy 44B STi 4Cam 16Valve Turbo Intercooled AWD
EJ22T, STi EJ207 DOHC, Vi-PEC (Spare Autronic) @ 426.20HP / 394.94ft lb @ 00psi
Tuned By: Franz Diebold ( DIEBOLD AUTOSPORT ) @ NVauto
EJ22T, STi EJ207 DOHC, Vi-PEC (Spare Autronic) @ 426.20HP / 394.94ft lb @ 00psi
Tuned By: Franz Diebold ( DIEBOLD AUTOSPORT ) @ NVauto
-
- Fourth Gear
- Posts: 1047
- Joined: Thu Feb 16, 2006 5:00 am
- Location: kelowna bc canada
- Contact:
Re: Size of LEDs for the cluster
did nothing with the tinting the red leds were more then enough

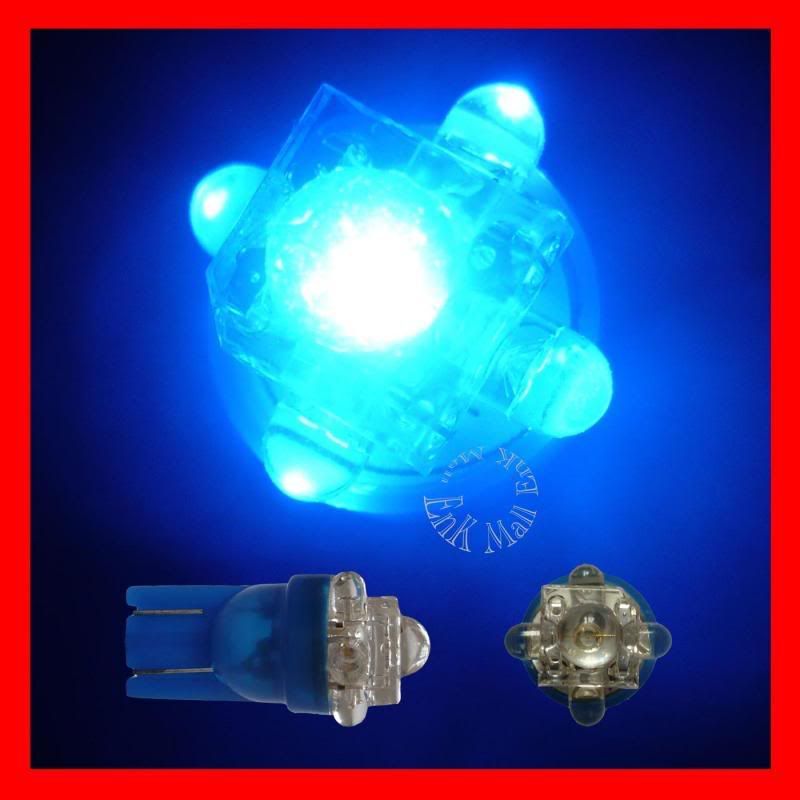

the two bigger #194's have 5 leds and look like this
and the four smaller #74 leds look like this
the two bigger #194's have 5 leds and look like this
and the four smaller #74 leds look like this
Re: Size of LEDs for the cluster
What do the 2 bigger ones go to? Like if I want to do the tack and speedo blue and the rest red what would I have to do?
92 Turbo Legacy 2.2L
96 Explorer 4.0L
96 Explorer 4.0L
Re: Size of LEDs for the cluster
The two bigger ones go at the top of the tach and speedo and theres not really a way to light each gauge individually due to placement of lights. The smaller ones go on both sides of the tach and speedo kinda like, s b s s b s where s=smaller and b=bigger and there aren't really any dividers either.
Danny
1994 Legacy Turbo wagon: rwd, 4eat, and a faint knock..
1992 Legacy postal: bone stock, 4eat, blown reverse.
1993 Legacy LS Awd: lifted, 4eat, higher mileage, and dirty.biggreen96 wrote:well get out there and smash that geo around and get comfy.
1994 Legacy Turbo wagon: rwd, 4eat, and a faint knock..
1992 Legacy postal: bone stock, 4eat, blown reverse.
-
- First Gear
- Posts: 69
- Joined: Sun Dec 19, 2010 10:25 pm
- Location: Forest Grove, Oregon
Re: Size of LEDs for the cluster
Where did you buy the LEDs at?
93 Winestone Subaru Legacy L AWD-BROKEN
86 White Toyota 4Runner SR5 4x4
---Girls love it when I hit it sideways(It's a DRIFT thing)---
86 White Toyota 4Runner SR5 4x4
---Girls love it when I hit it sideways(It's a DRIFT thing)---
-
- Fourth Gear
- Posts: 1047
- Joined: Thu Feb 16, 2006 5:00 am
- Location: kelowna bc canada
- Contact:
-
- First Gear
- Posts: 69
- Joined: Sun Dec 19, 2010 10:25 pm
- Location: Forest Grove, Oregon
Re: Size of LEDs for the cluster
Ok I found the smaller ones but I'm having trouble finding the bigger one. Does it matter which type goes in as long as it's 194
93 Winestone Subaru Legacy L AWD-BROKEN
86 White Toyota 4Runner SR5 4x4
---Girls love it when I hit it sideways(It's a DRIFT thing)---
86 White Toyota 4Runner SR5 4x4
---Girls love it when I hit it sideways(It's a DRIFT thing)---
-
- Fourth Gear
- Posts: 1047
- Joined: Thu Feb 16, 2006 5:00 am
- Location: kelowna bc canada
- Contact:
Re: Size of LEDs for the cluster
If you put blue ones in do you think I'll have to remove the green overlay thing?
94 legacy gt turbo
pics! http://bbs.legacycentral.org/viewtopic.php?f=9&t=45358
pics! http://bbs.legacycentral.org/viewtopic.php?f=9&t=45358
-
- Fourth Gear
- Posts: 1047
- Joined: Thu Feb 16, 2006 5:00 am
- Location: kelowna bc canada
- Contact:
Re: Size of LEDs for the cluster
from what i remember a while ago some one tried the blue ones and there were not as bright so yes, i would suggest removing the green film
Re: Size of LEDs for the cluster
Awesome, thanks for the info! I've been wanting to do this, I hate the green, and red's easier on your eyes.
And Subie, it takes longer for your eyes to adjust at night from the blue light back to darkness, I would not recommend it, red will be the easiest on your eyes. But it's up to you, I can't see it being a huge issue, I know even the green bothers me though since I'm used to red.
And Subie, it takes longer for your eyes to adjust at night from the blue light back to darkness, I would not recommend it, red will be the easiest on your eyes. But it's up to you, I can't see it being a huge issue, I know even the green bothers me though since I'm used to red.
-
- First Gear
- Posts: 69
- Joined: Sun Dec 19, 2010 10:25 pm
- Location: Forest Grove, Oregon
Re: Size of LEDs for the cluster
Thanks! I found all the ones I need and I'm going to order them and they shall be lighting up soon.
93 Winestone Subaru Legacy L AWD-BROKEN
86 White Toyota 4Runner SR5 4x4
---Girls love it when I hit it sideways(It's a DRIFT thing)---
86 White Toyota 4Runner SR5 4x4
---Girls love it when I hit it sideways(It's a DRIFT thing)---
Re: Size of LEDs for the cluster
Yeah....if I swapped I'd go all red.
Josh
surrealmirage.com/subaru
1990 Legacy (AWD, 6MT, & EJ22T Swap)
2020 Outback Limted XT
If you need to get a hold of me please email me rather then pm
surrealmirage.com/subaru
1990 Legacy (AWD, 6MT, & EJ22T Swap)
2020 Outback Limted XT
If you need to get a hold of me please email me rather then pm
Re: Size of LEDs for the cluster
Well i did a cluster mod to my car a LOONG time ago with blue bulbs.
All i did was take standard 194's and painted them with glass paint.
I did nothing reguarding prizm moding, just the grean domes off the lamps.
It does work but its bunk when you figure out that there are 2 more bulbs that need replacing.....
So im going to do this mod with blue LED's to see my results.
All i did was take standard 194's and painted them with glass paint.
I did nothing reguarding prizm moding, just the grean domes off the lamps.
It does work but its bunk when you figure out that there are 2 more bulbs that need replacing.....
So im going to do this mod with blue LED's to see my results.
93 Legacy Turbo AT Sliver Stock, Ultra Rotty Body
93 Legacy Turbo MT Silver Rob Tune 550cc Lowered GT28 AWIC 4.11 05 Leg GT rims Mint body
95 Chevy Corvette MT ZR-1 Black X Brace Chipped
94 Legacy Turbo AT Blue Stock SOLD
06 Pontiac G6 AT Green Stock SOLD
93 Legacy Turbo MT Silver Rob Tune 550cc Lowered GT28 AWIC 4.11 05 Leg GT rims Mint body
95 Chevy Corvette MT ZR-1 Black X Brace Chipped
94 Legacy Turbo AT Blue Stock SOLD
06 Pontiac G6 AT Green Stock SOLD
Re: Size of LEDs for the cluster
i wanna white but i'm not sure does the beatiful..red is very nice.how this led installed..need to remove the whole console?
Re: Size of LEDs for the cluster
Yes you need to remove the entire cluster and lots of other rando plastic stuffs in and around it.
93 Legacy Turbo AT Sliver Stock, Ultra Rotty Body
93 Legacy Turbo MT Silver Rob Tune 550cc Lowered GT28 AWIC 4.11 05 Leg GT rims Mint body
95 Chevy Corvette MT ZR-1 Black X Brace Chipped
94 Legacy Turbo AT Blue Stock SOLD
06 Pontiac G6 AT Green Stock SOLD
93 Legacy Turbo MT Silver Rob Tune 550cc Lowered GT28 AWIC 4.11 05 Leg GT rims Mint body
95 Chevy Corvette MT ZR-1 Black X Brace Chipped
94 Legacy Turbo AT Blue Stock SOLD
06 Pontiac G6 AT Green Stock SOLD
Re: Size of LEDs for the cluster
OK. Thanks
Re: Size of LEDs for the cluster
If I was going to do orange/amber L.E.D.s would the green tint stuff be a problem? I've seen orange/amber gauges before and, personally, I like it the most with red being a close second.
Danny
1994 Legacy Turbo wagon: rwd, 4eat, and a faint knock..
1992 Legacy postal: bone stock, 4eat, blown reverse.
1993 Legacy LS Awd: lifted, 4eat, higher mileage, and dirty.biggreen96 wrote:well get out there and smash that geo around and get comfy.
1994 Legacy Turbo wagon: rwd, 4eat, and a faint knock..
1992 Legacy postal: bone stock, 4eat, blown reverse.
Re: Size of LEDs for the cluster
If anyone has ever done blue please post pics!
94 legacy gt turbo
pics! http://bbs.legacycentral.org/viewtopic.php?f=9&t=45358
pics! http://bbs.legacycentral.org/viewtopic.php?f=9&t=45358
Re: Size of LEDs for the cluster
I am just curious cause I'm trying to do this, is there anyone who could give me two part numbers? I want to try the blue or maybe the red but the bulbs I found I'm not sure are the right ones so I don't want to order the wrong ones can someone help me out?? And maybe post a few pictures on how to separate a cluster the proper way cause I'm a big guy and just don't want to end up ripping it apart and breaking shit. Any help would be greatly appreciated.
