Looking for the factory part numbers for the shifter bushings (and the spring). Can't find a diagram here, rockauto, subaruparts, subarupartsforyou, etc. to call and order the replacement parts for.

I'm off until Wednesday - and it's time to start wrenching :)

_________________
1994 Legacy L AWD 5-sp • 2002 Chrysler 300M Special • 1968 Mustang Fastback C-code


Last edited by TrueBlue on Thu Sep 04, 2008 12:06 am, edited 2 times in total.

Profile  Offline

 Post subject:
PostPosted: Fri Aug 29, 2008 3:12 pm
First Gear
Joined: Sat Aug 23, 2008 5:30 pm
Posts: 100
Location: ex-Buffalo, NY; now Cleveland, OH
This should probably be in drivetrain - sorry, later post than I'm used to. Mods, feel free to move. :)

In the meantime - is this what I'm looking for?

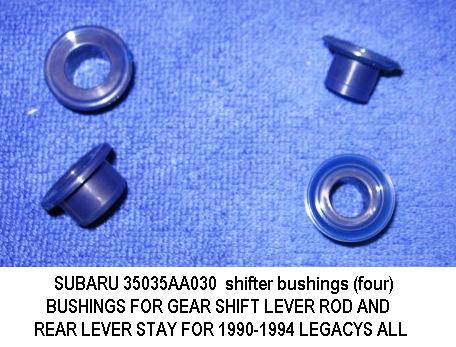

Part number for Legacy Manual Transmission Shifter Bushings: 35035AA030



From here:
http://www.subarupartsforyou.com/cp_partlistbymod.php?model=Legacy&subcat=Gear+Shift%2C+Bushings&year=1994

Discussion here:
http://www.ultimatesubaru.org/forum/showthread.php?t=68989

_________________
1994 Legacy L AWD 5-sp • 2002 Chrysler 300M Special • 1968 Mustang Fastback C-code


Profile  Offline

 Post subject:
PostPosted: Fri Aug 29, 2008 7:26 pm
Fourth Gear
Joined: Fri Oct 03, 2003 6:22 pm
Posts: 1970
Location: Fargo, ND
while you are in there i strongly reccomend replacing that little spring as well. my car shifted like new after replacing it.

_________________
'95 AWD L Wagon w/agx, 275k mi.
'94 SS 5MT w/agx, 131k mi.
'93 AWD Impreza L wagon w/ej18, 200,000 mi.
Maybe you should put some shorts on or something, if you want to keep fighting evil today.


Profile  Offline

 Post subject:
PostPosted: Fri Aug 29, 2008 10:55 pm
First Gear
Joined: Sat Aug 23, 2008 5:30 pm
Posts: 100
Location: ex-Buffalo, NY; now Cleveland, OH
Most definitely. I hear this is a major PITA to get off - -anything I can do while I'm in there, I'd like to.

_________________
1994 Legacy L AWD 5-sp • 2002 Chrysler 300M Special • 1968 Mustang Fastback C-code


Profile  Offline

 Post subject:
PostPosted: Sat Aug 30, 2008 1:33 am
quasi-mod-o
quasi-mod-o
Joined: Thu Dec 05, 2002 7:06 pm
Posts: 6072
Location: Orlando, FL
Moved.

That's only four of them, and those aren't the ones that cause the most problems.

The other two, all the way back in the linkage coming straight out of the transmission, are 35030KA030.

I'd guess most dealers have them in stock, as they get replaced enough to warrant keeping them around.

The spring will likely have to be ordered, and I don't have that part number handy.

_________________
2000 Subaru Legacy B4 RSK

"Der Wahnsinn ist nur eine schmale Brücke/die Ufer sind Vernunft und Trieb"

*Formerly subyluvr2212*


Profile  Offline

 Post subject:
PostPosted: Sat Aug 30, 2008 5:27 am
First Gear
Joined: Sat Aug 23, 2008 5:30 pm
Posts: 100
Location: ex-Buffalo, NY; now Cleveland, OH
:smt038

Good stuff. Can not wait to try this car with a decent stick in it.

_________________
1994 Legacy L AWD 5-sp • 2002 Chrysler 300M Special • 1968 Mustang Fastback C-code


Profile  Offline

 Post subject:
PostPosted: Sat Aug 30, 2008 3:18 pm
First Gear
Joined: Sat Aug 23, 2008 5:30 pm
Posts: 100
Location: ex-Buffalo, NY; now Cleveland, OH

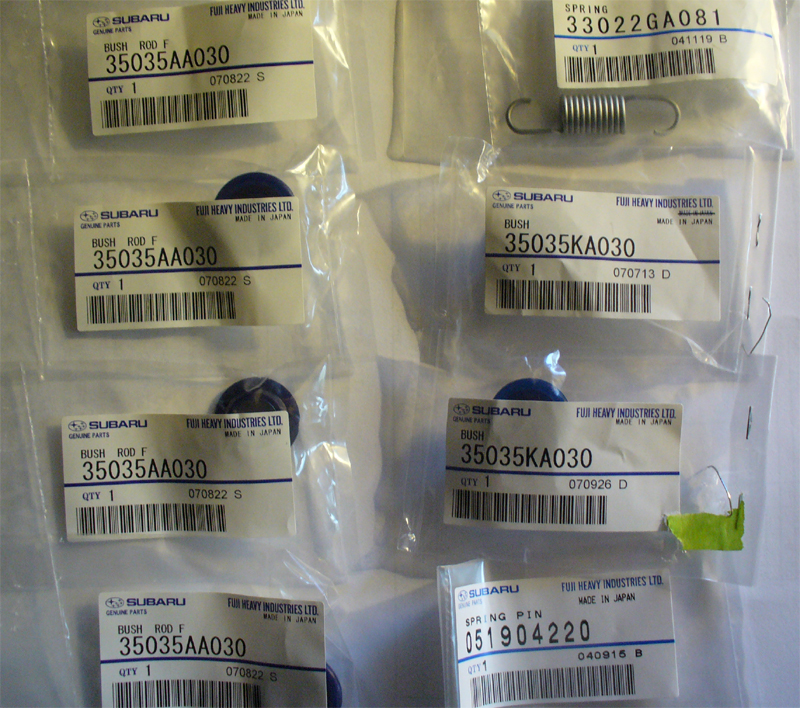

Here's what I have - straight from two Subaru dealerships:

Large Bushings
p/n 35035KA030

Small Bushings
p/n 35035AA030

Spring Pin
p/n 051904220


Total Cost: $46.20 + tax.

_________________
1994 Legacy L AWD 5-sp • 2002 Chrysler 300M Special • 1968 Mustang Fastback C-code


Profile  Offline

 Post subject:
PostPosted: Tue Sep 02, 2008 6:18 pm
quasi-mod-o
quasi-mod-o
Joined: Thu Dec 05, 2002 7:06 pm
Posts: 6072
Location: Orlando, FL
Part # for the shifter return spring is 33022AA081.

_________________
2000 Subaru Legacy B4 RSK

"Der Wahnsinn ist nur eine schmale Brücke/die Ufer sind Vernunft und Trieb"

*Formerly subyluvr2212*


Profile  Offline

 Post subject:
PostPosted: Tue Sep 02, 2008 7:39 pm
Fourth Gear
Joined: Tue Oct 18, 2005 3:52 pm
Posts: 1526
Location: Massillon, Ohio
Wow, that's pricey for some little bushings! I wonder if it would have been cheaper in the end to upgrade to WRX linkage?

_________________
SUBARUEHS Racing


Profile  Offline

 Post subject:
PostPosted: Wed Sep 03, 2008 9:16 pm
First Gear
Joined: Sat Aug 23, 2008 5:30 pm
Posts: 100
Location: ex-Buffalo, NY; now Cleveland, OH
Picking up the parts today. Let me know if these are correct.


Mike, they told me that "33022AA081" wasn't valid?

Spring pin isn't needed, but while I'm in there :P

_________________
1994 Legacy L AWD 5-sp • 2002 Chrysler 300M Special • 1968 Mustang Fastback C-code


Profile  Offline

 Post subject:
PostPosted: Thu Sep 04, 2008 10:45 pm
quasi-mod-o
quasi-mod-o
Joined: Thu Dec 05, 2002 7:06 pm
Posts: 6072
Location: Orlando, FL
I suck. 33022GA081. But it looks like you figured that out already anyway.

My apologies.

I'd say go ahead and replace the spring pin anyway, as you'll likely f the old one up getting it out.

_________________
2000 Subaru Legacy B4 RSK

"Der Wahnsinn ist nur eine schmale Brücke/die Ufer sind Vernunft und Trieb"

*Formerly subyluvr2212*


Profile  Offline

 Post subject:
PostPosted: Thu Sep 04, 2008 11:59 pm
First Gear
Joined: Sat Aug 23, 2008 5:30 pm
Posts: 100
Location: ex-Buffalo, NY; now Cleveland, OH
Very cool about the pin (glad I got it then!), and no sweat, Mike.

I'll try and grab pictures of the "install" for the forum. :)

_________________
1994 Legacy L AWD 5-sp • 2002 Chrysler 300M Special • 1968 Mustang Fastback C-code


Profile  Offline

 Post subject:
PostPosted: Fri Sep 05, 2008 2:39 am
quasi-mod-o
quasi-mod-o
Joined: Thu Dec 05, 2002 7:06 pm
Posts: 6072
Location: Orlando, FL
Hopefully you've gathered in your post searching that this is a HUGE pain in the ass, and that you should honestly plan for your car to be down for a couple days.

_________________
2000 Subaru Legacy B4 RSK

"Der Wahnsinn ist nur eine schmale Brücke/die Ufer sind Vernunft und Trieb"

*Formerly subyluvr2212*


Profile  Offline

 Post subject:
PostPosted: Fri Sep 05, 2008 2:18 pm
First Gear
Joined: Sat Aug 23, 2008 5:30 pm
Posts: 100
Location: ex-Buffalo, NY; now Cleveland, OH
LOL - I have picked that up! :lol: :-D

No worries - Roo's not even plated. In fact, this is the most minor of the (car) projects going on, 300M just got $700 of new rubber and tire pressure sensors, and the fastback is going to have Opentracker subframe connectors welded in (by moi) on a friend's frame jig.

Once all of this is done, the Legacy comes in to the shop. I have to tell you though, this the project I'm really looking forward to as it will make a HUGE difference in how the car drives. Can't wait. :)

_________________
1994 Legacy L AWD 5-sp • 2002 Chrysler 300M Special • 1968 Mustang Fastback C-code


Profile  Offline

 Post subject:
PostPosted: Tue Oct 21, 2008 1:59 pm
First Gear
Joined: Sat Aug 23, 2008 5:30 pm
Posts: 100
Location: ex-Buffalo, NY; now Cleveland, OH
Okay, I'm stuck.

I have the linkage (stay rod and shift rod) out up to the vertical spring pin that connects the shift rod to the rod that comes out of the tranny. But that little pin is a PITA. Anyone have a trick to get him out?

I have pics and I'll be doing a write up soon.

_________________
1994 Legacy L AWD 5-sp • 2002 Chrysler 300M Special • 1968 Mustang Fastback C-code


Profile  Offline

 Post subject:
PostPosted: Tue Oct 21, 2008 7:13 pm
Site Admin
Site Admin
Joined: Tue Oct 15, 2002 11:37 am
Posts: 25414
Location: Houston, Tx
There's two spring (roll) pins. An inner one and outer one. You need to use a smaller punch to get the inner one out, and then a larger diameter one to get the big one out.

I made two punches out of bar stock to help in getting the spring pins back on. They have a little part at the top that steps down so the spring pin fits over it. That helps TREMENDOUSLY in putting them back in.

Here's some pics
http://main.experiencetherave.com/subar ... intcustom/

_________________
Josh

surrealmirage.com/subaru
1990 Legacy (AWD, 6MT, & EJ22T Swap)
1997 Impreza OBS

If you need to get a hold of me please email me rather then pm


Profile  Offline

 Post subject:
PostPosted: Tue Oct 21, 2008 8:34 pm
First Gear
Joined: Sat Aug 23, 2008 5:30 pm
Posts: 100
Location: ex-Buffalo, NY; now Cleveland, OH
You did a helluva nice job there with the clevis ends, Josh. I wish mine looked 1/10 as clean as yours do.

Do you remember what diameter the punch and punch ends are that you made? I might be able to get something fabbed up at work tonight.

edit: Never mind - got it. If you still have the dimensions, I'd like to grab them.

I can already tell that this is going to be soooooooooo nice. Can't wait to get her back together.

New question: Anybody know what threads are on the shift knob? Like to get a heavy ball-style knob for this :)

_________________
1994 Legacy L AWD 5-sp • 2002 Chrysler 300M Special • 1968 Mustang Fastback C-code


Profile  Offline

 Post subject:
PostPosted: Mon Nov 03, 2008 7:11 pm
Site Admin
Site Admin
Joined: Tue Oct 15, 2002 11:37 am
Posts: 25414
Location: Houston, Tx
Sorry about the delay in the reply.

I think it's just 1/4" bar stock....however I can get you the dimensions if you're still interested. Just let me know.

_________________
Josh

surrealmirage.com/subaru
1990 Legacy (AWD, 6MT, & EJ22T Swap)
1997 Impreza OBS

If you need to get a hold of me please email me rather then pm


Profile  Offline

 Post subject:
PostPosted: Sat Nov 22, 2008 12:07 am
First Gear
Joined: Sat Aug 23, 2008 5:30 pm
Posts: 100
Location: ex-Buffalo, NY; now Cleveland, OH
If you'd like Josh, no sweat. It's back together.

Just wanted to round out the thread by finishing: Thanks to the bushings, and the return spring, the car shifts normally, even if it is "wiggly" in gear. Definitely a must-do repair.

_________________
1994 Legacy L AWD 5-sp • 2002 Chrysler 300M Special • 1968 Mustang Fastback C-code


Profile  Offline

 Post subject:
PostPosted: Sun Nov 23, 2008 8:56 pm
First Gear
Joined: Wed Jun 20, 2007 9:38 pm
Posts: 214
Location: Asheville, NC
I hate to tell you guys this, but I went out and bought all brand new bushings from my local dealer and installed them. At first it was great! Felt really notchy and new, but after about 1000 miles of driving, it feels just as loose as it did before....my brother has a lathe and is working on making up a prototype set of bushings out of aluminum so that this will not happen again. I will let you guys see some pics and let you know how it works when we do it.


Profile  Offline

 Post subject:
PostPosted: Mon Nov 24, 2008 1:14 am
Fifth Gear
Joined: Mon Nov 06, 2006 3:41 am
Posts: 8291
Location: Tenino, WA
Did you replace the spring too?

_________________
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson


Profile  Offline

 Post subject:
PostPosted: Mon Nov 24, 2008 4:11 pm
First Gear
Joined: Sat Aug 23, 2008 5:30 pm
Posts: 100
Location: ex-Buffalo, NY; now Cleveland, OH
I can see what he's saying... mine is still a bit "wiggly," even in gear with a brand new factory centering spring. Aluminum bushings will probably clean some of the slop up. Maybe press in some brass sleeves for the faces?

I'd like to see the end results of those machined bushings. :)

_________________
1994 Legacy L AWD 5-sp • 2002 Chrysler 300M Special • 1968 Mustang Fastback C-code
