can I run some ej22t cam sprockets on SOHC ej25 heads?
what I am concerned about is the keyway and sensors being in the same place, as well as the mounting surface diameter.
cam sprocket q's
Moderators: Helpinators, Moderators
cam sprocket q's
1994 Touring Wagon: ruby mica, 5mt swapped
Since no one seems to know yet, including myself, my guess is that it would work. The usdm dohc 2.5 heads work with the ej22t shortblock and stock cam sensors just fine correct? My guess is that it should work, but perhaps sourcing a picture of the back of an ej22t driverside cam gear to compare with yours would probably prove most helpful. Sorry I couldn't be of more help.
Subaru Impreza Ver6 replica with Ver4 Type R motorset.
Mitsubishi Evolution 4 replica with Evo4 GSR motorset.
Mitsubishi Evolution 4 replica with Evo4 GSR motorset.
-
legacy92ej22t
- Knowledgeable
- Posts: 5203
- Joined: Thu Nov 07, 2002 3:59 am
- Location: Cogan Station, PA
Couldn't you just check to see if the keyway and the timing marks are the same by holding them both up to the head and looking at the marks in relation to the keyway?
-Matt
'92 SS 5mt. All go and no show. Sold :(
'94 Audi UrS4 Modded (new project)
'96 Outback 5mt.
'07 Legacy 2.5i SE
[quote="Redlined"]
Oh... and I hope the fucker get bunked with Gunter, arrested for raping Gorillas.[/quote]
'92 SS 5mt. All go and no show. Sold :(
'94 Audi UrS4 Modded (new project)
'96 Outback 5mt.
'07 Legacy 2.5i SE
[quote="Redlined"]
Oh... and I hope the fucker get bunked with Gunter, arrested for raping Gorillas.[/quote]
-
All_talk
- Third Gear
- Posts: 613
- Joined: Thu Dec 30, 2004 5:14 pm
- Location: Thorp (Ellensburg), WA
- Contact:
I've got both sprockets lying on my bench right now... they are different, the timing "marks" (for lack of a better word) are the same pattern but at different angles from the pin. The change in angle seems to match the difference in sensor mounting location on the heads, but I have yet to measure and confirm this. The pin is the reference to the cam, I dont think the EJ22T uses the key and the DOHC sprockets dont even have the keyway. The pin location could probably be relocated to match the sensor.
Another difference is that the DOHC sprockets have magnets in the timing marks, the EJ22T's are only metal protrusions in the casting. I have read that the magnets will work with the EJ22T sensor but dont know if the non-magnetic nubs on the EJ22T sprocket will work with the DOHC sensor.
I'll go snap a few pics.
Gary
Another difference is that the DOHC sprockets have magnets in the timing marks, the EJ22T's are only metal protrusions in the casting. I have read that the magnets will work with the EJ22T sensor but dont know if the non-magnetic nubs on the EJ22T sprocket will work with the DOHC sensor.
I'll go snap a few pics.
Gary
No matter how broke I am... I always seem to find two cents.
-
All_talk
- Third Gear
- Posts: 613
- Joined: Thu Dec 30, 2004 5:14 pm
- Location: Thorp (Ellensburg), WA
- Contact:

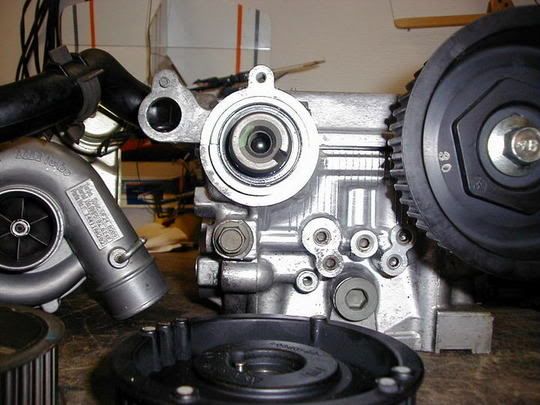

Here's the pics...
