Need your help guys on vacuum hoses

Post by The outsider »

Hi, this is my first post ( HI :-D ) and i need your help guys...


this may shock/upset the purist but this is my mode of transport


but as you can see it was less than reliable so drastic action was taken

1992 uk Legacy EJ20T......

..but now im stuck.... when i got the engine all the vacuum hoses were off and i dont know what goes where

can someone please help me out with these as the haynes maunual and even the workshop cd doesnt shed enough light on these... ( i've tried flaging over legacy owners to have a look under the bonet, but they think im mad and speed off :( )


oh for those interested i'll post a full (ish) project report once im allowed in.....

cheers ...........The outsider
vw baywindow EJ20T
Top
n2x4
Fourth Gear
Posts: 1522
Joined: Tue Oct 18, 2005 3:52 pm
Location: Massillon, Ohio

Post by n2x4 »

Try this one out:
SUBARUEHS Racing
Top
PhyrraM
Fourth Gear
Posts: 1980
Joined: Thu Aug 11, 2005 4:34 pm
Location: Lake Elsinore, CA

Post by PhyrraM »

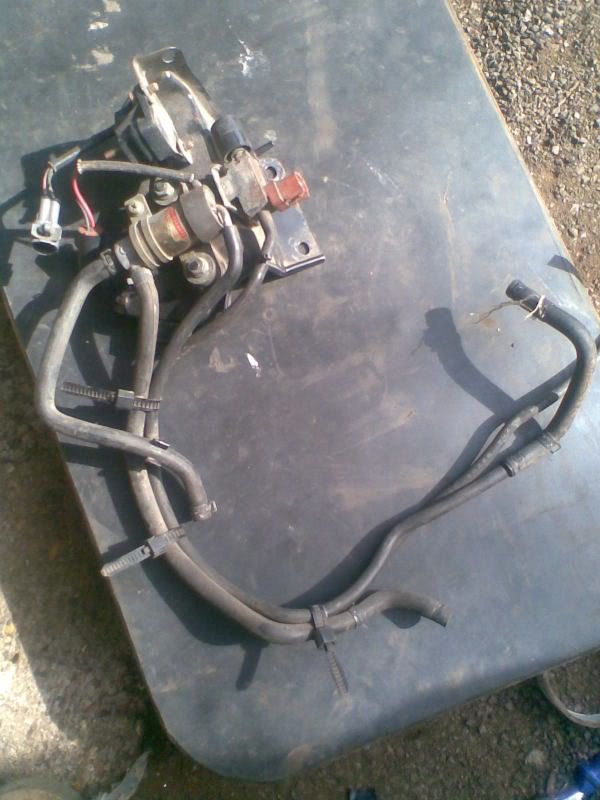

The large hose straight out the bottom of the bigger goldish soleniod goes to the intake track after the AFM, but before the turbo.

The other large hose coming out 90 degrees from the bottom goes to the wastegate actuator.

The smaller one coming out 90 degrees from the top of the goldish soliniod goes to the nipple on the turbo outlet.

The very small one coming from the other soliniod near the reddish-brown connector goes to manifold vaccuum. One of the three nipples near the throttlebody.

The open nipple on the soliniod with the reddish brown connector gets looped around and connected to the open nipple on the last sensor in the picture. That's the MAP sensor, the one with the open nipple pointed down sort-of hidden by the wires.
'93 Winestone SS Auto, '91 Pearl White SS.
'93 Pure White SS EJ20G slanty intercooled, SIDESWIPED! In stasis.
'94 FWD and '95 AWD Laguna Blue SVXs.
2017 Pure Red BRZ Limited w/Performance pack
Top
The outsider
In Neutral
Posts: 4
Joined: Fri Apr 24, 2009 9:02 pm

Post by The outsider »

Gentlemen, you've made me one very happy camper!!

it's taken me weeks and several different forums, from all across the globe to finally get an answer.....

....man love and beers* goes out to you.!!!!!!!!!


* if im ever in your neck of the woods , the beers are on me!!
vw baywindow EJ20T
Top
Dynamic Entry
Third Gear
Posts: 908
Joined: Wed Dec 06, 2006 11:24 am
Location: Calgary, AB

Post by Dynamic Entry »

deal.

not that I am taking credit for the diagram, but just deal on beers anyhow.

btw, is your name a Camus reference?....


also, welcome aboard and all. And why are you ashamed that your mode of transport is a flat-bed?
Andrew

16 Outback - wife's daily
95 Gravel Express - Sold
92 Green SVX - RIP
02 WRB WRX - Sold
93 White SS "Angel": 4EAT to 5MT 550 Robtune !SOLD!
̶9̶2̶ ̶W̶i̶n̶e̶s̶t̶o̶n̶e̶ ̶S̶S̶ ̶5̶M̶T̶ R.I.P.
Top
kimokalihi
Fifth Gear
Posts: 8360
Joined: Mon Nov 06, 2006 3:41 am
Location: Tenino, WA

Post by kimokalihi »

$135 before shipping from 1stsubaruparts.com for all those hoses. Is it a good idea to do this or just buy some silicone hose in those diameters and cut it yourself?
98 Metro Hatch Daily Driver :)
91 SS EJ20G Engine/Tranny/Diff Swap Build Thread Here
"Your testes are close to your bottom but you still play with them all the time." Jeremy Clarkson
Top
Bdub
Second Gear
Posts: 444
Joined: Mon Nov 12, 2007 1:59 am
Location: Connecticut

Post by Bdub »

The generic stuff does not fit as well as the OEM.
You could go either way, depending on your budget, but be prepared for hoses not snugging properly if you go aftermarket.
Through The Generations...
91 SS 4eat
95 LSi 4eat- Sold
07 2.5i 5mt- For Sale
13 STI Sedan
Top
Aerotech
Fourth Gear
Posts: 1093
Joined: Tue Apr 13, 2004 8:37 am
Location: NYC, NY

Post by Aerotech »

Are you in the UK? Number plate looks like it...

Nice camper... is that one of the side-tilt pop tops? Devon, I think?... Cool flares, too.
Where are you putting the radiator?
Jerry

'04 Passat GLS 4Motion 5MT (Subaru by VW)
'86 Vanagon Syncro Camper Garage Queen
Top
n2x4
Fourth Gear
Posts: 1522
Joined: Tue Oct 18, 2005 3:52 pm
Location: Massillon, Ohio

Post by n2x4 »

I've never had a problem with vacuum hose from the auto parts store as replacement. I zip tie all the ends just to be safe. No problems yet...
SUBARUEHS Racing
Top
asc_up
Fifth Gear
Posts: 2473
Joined: Sun Sep 10, 2006 9:15 am
Location: University Place, WA

Post by asc_up »

n2x4 wrote:I've never had a problem with vacuum hose from the auto parts store as replacement. I zip tie all the ends just to be safe. No problems yet...
I'll second that.
-Aaron

2000 Audi S4 - 2.7L Twin-turbo, 6 Speed

[quote="evolutionmovement"]It was me. And those are my balls. Happy Sunday![/quote]
Top
The outsider
In Neutral
Posts: 4
Joined: Fri Apr 24, 2009 9:02 pm

Post by The outsider »

.... im going to have to go with aftermarket hosing as nothings located in the same place as the car......

I wish mine was the flat bed most of the time :lol:

yeah, im in the uk......the pop goes straight up,, which is a nighmare when you try and get it down as it always falls one end at a time and never lands where it should....
Radiator is going underneath at an angle (front end down as to scoop the air) got to try and work out a lifting mech as i'll need to raise it for speed bumps ( us brits love em :x )


came across another problem at the weekend.....

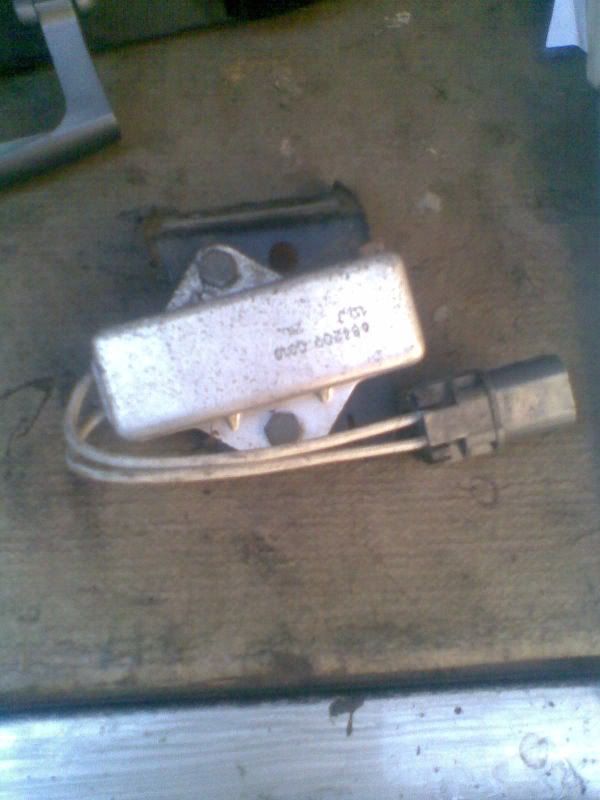

does anyone know what this is .....and does so i can work out where is wires too....


cheers guys
vw baywindow EJ20T
Top
PhyrraM
Fourth Gear
Posts: 1980
Joined: Thu Aug 11, 2005 4:34 pm
Location: Lake Elsinore, CA

Post by PhyrraM »

Looks like the resistor that is only used on the automatic transmissions. Was it near the pressure sensor/MAP sensor?
'93 Winestone SS Auto, '91 Pearl White SS.
'93 Pure White SS EJ20G slanty intercooled, SIDESWIPED! In stasis.
'94 FWD and '95 AWD Laguna Blue SVXs.
2017 Pure Red BRZ Limited w/Performance pack
Top
The outsider
In Neutral
Posts: 4
Joined: Fri Apr 24, 2009 9:02 pm

Post by The outsider »

That's part of the problem dude, because i got it all already striped out of the car ive got no reference point for where it should sit in the car....
vw baywindow EJ20T
Top
Legacy777
Site Admin
Site Admin
Posts: 27930
Joined: Tue Oct 15, 2002 11:37 am
Location: Houston, Tx
Contact:
Contact Legacy777

Post by Legacy777 »

That's most likely the dropping resistor for the auto transmission, or it may be the resistor for the daytime running lights. Either way, you don't need it.
Josh

surrealmirage.com/subaru
1990 Legacy (AWD, 6MT, & EJ22T Swap)
2020 Outback Limted XT

If you need to get a hold of me please email me rather then pm
Top
Apex3
Fourth Gear
Posts: 1165
Joined: Tue Jan 06, 2009 5:06 am
Location: Renton, WA

Post by Apex3 »

I replaced all the smaller hoses with universal, they all fit pretty tight, and it was something like $10. The bigger hoses you have to get elsewhere though...
